DOP GREEN Green paper card
DOP GREEN Green paper card

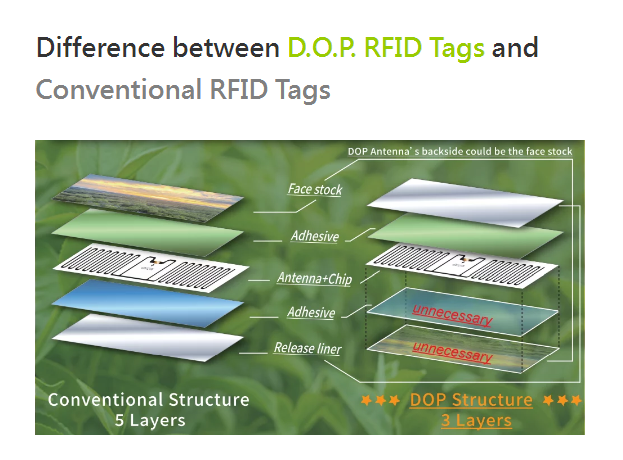

DOP GREEN Paper card embedded Direct On Paper RFID antenna,
The antenna uses an "additive manufacturing" process without chemical etching.
Related products
DOP GREEN Paper card
Chip Type: NFC,RFID
Working frequency : 13.56zmhz, ISO 14443A agreement
Technical parameters: 1024byte/80 memory.
Packaging material: Direct On Paper RFID antenna
Standard size: 85.5*54 or made to the required size
Card thickness: 0.55mm+-0.04 mm
Read and write distance: 1.5-8CM (related to antenna size, reader power)
Process selection: double-sided four-color, monochrome printing, high resistance / low anti-magnetic strip, barcode, coding, laser code, convex code,
Bronzing/silver, gold/silver, scratch, UV oil, portrait, punching, etc.
Application areas: standard size paper cards such as banks, transportation, hospitals, schools, supermarkets, hotel parking, travel tickets, exhibition management, etc.
Chip Type: NFC,RFID
Working frequency : 13.56zmhz, ISO 14443A agreement
Technical parameters: 1024byte/80 memory.
Packaging material: Direct On Paper RFID antenna
Standard size: 85.5*54 or made to the required size
Card thickness: 0.55mm+-0.04 mm
Read and write distance: 1.5-8CM (related to antenna size, reader power)
Process selection: double-sided four-color, monochrome printing, high resistance / low anti-magnetic strip, barcode, coding, laser code, convex code,
Bronzing/silver, gold/silver, scratch, UV oil, portrait, punching, etc.
Application areas: standard size paper cards such as banks, transportation, hospitals, schools, supermarkets, hotel parking, travel tickets, exhibition management, etc.
